  • HORIZONTAL AND VERTICAL ROTARY TABLE
HORIZONTAL AND VERTICAL ROTARY TABLE

HORIZONTAL AND VERTICAL ROTARY TABLE

  • Material:
  • Finish:

     Works as an index center in the vertical position as well as a conventional rotary table for circular cutting,angle setting,boting and spot facing and similar work.
The table is made of Meehanite,The base of the body,table surface and the rotating parts are ground finished,permitting very smooth rotation.
Worm gear is 90:1, The work table is gtaduated a full 360°.
These Rotary Table are popular for their excellent performance,practical design and reasonable cost.
Used the key guide block,the center can be corrected both quickly and accurately.

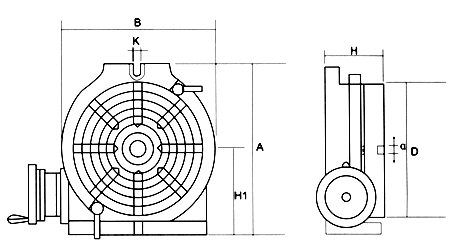

Model

Table

Base

Bolt

Center

Worm

N.W.(kg)

Dimension

Slots

Gear

D

H

H1

A

B

K

Sleeve

Ratio

CH-HV4

100

62

70

140

118

14

MT2

90:1

5

3.93

2.44

2.75

5.51

4.6

0.55

CH-HV6

150

83

100

200

160

16

MT2

12

5.91

3.26

3.93

7.87

6.3

0.63

CH-HV8

200

105

135

265

220

16

MT3

31

7.87

4.13

5.31

10.43

8.7

0.63

CH-HV10

250

115

165

325

280

16

MT3

47

9.84

4.33

6.49

12.79

11

0.63

CH-HV12

300

132

195

391

330

16

MT4

76

11.81

5.19

7.69

15.39

13

0.63

CH-HV14

350

138

230

450

390

16

MT4

95

13.77

5.43

9.05

17.71

15

0.63

CH-HV16

400

155

255

500

430

16

MT4

135

15.74

6.1

10

19.68

17

0.63
