MEDIUM-DUTY LIVE CENTER

Material：
Finish：

The center is assembled with ball bearing and plain thrust bearing and needle bearing.
It can be used at medium speed.
The shaft is made of alloy steel and through heat treatment (HRC60℃±2℃)。It has super steel character and high durability.

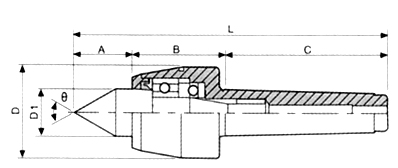

Model (MORES TAPER)	A	B	C	D	D1	d	L	Accuracy	θ	Weight (kg)
MT.3H	39	55	86	53	30	-	180	0.005	60°	1。28
MT.4H	42	62	108	63	32	-	208	0.005	60°	2。20
MT.5H	49	71	136	83	40	-	256	0.005	60°	4。33
MT.6H	80	110	189	128	70	-	379	0.008	60°	14。2
MT.1B	17	43	70	35	15	-	120	0.005	60°	0。75
MT.2B	24	41	80	45	20	-	145	0.005	60°	0。95
MT.3B	39	55	86	53	30	-	180	0.005	60°	1。28
MT.4B	42	62	108	63	32	-	208	0.005	60°	2。20
MT.5B	49	71	136	83	40	-	256	0.005	60°	4。33
MT.6B	80	110	189	128	70	-	379	0.005	60°	14。2
MT.3X	45	55	86	53	30	10	86	0.008	60°	1。28
MT.4X	52	62	108	63	32	12	218	0.005	60°	2。20
MT.5X	59	71	136	83	40	14	166	0.005	60°	4。42
