ER MILLING CHUCK SET

Material：
Finish：

Normally,ER milling chuck set is supplied with NT shanks(DIN2080),but BT(MAS-403),DV(DIN68971A),IV(ISO7388-1)shanks can also be supplied upon requests.Each set include 15pcs collets.

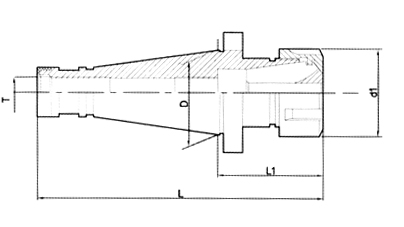

Model	L1	L	d1	T	D
NT30×ER16A-45	45	113.4	28		31.75
NT30×ER20A-45	45	113.4	34	M12×1.75
NT30×ER25-55	55	123.4	42	or
NT30×ER32-60	60	128.4	50	1/2″×W12
NT30×ER40×75	75	143.4	63
NT40×ER20A-45	45	138.4	34		44.45
NT40×ER25-55	55	148.4	42	M16×2.0
NT40×ER32-60	60	153.4	50	or
NT40×ER40-70	70	163.4	63	5/8″×W12
NT40×ER50-80	80	173.4	78
NT50×ER32-75	75	201.8	50	M24×3.0	69.85
NT50×ER40-80	80	206.8	63	or
NT50×ER50-80	80	206.8	78	1″×W24
