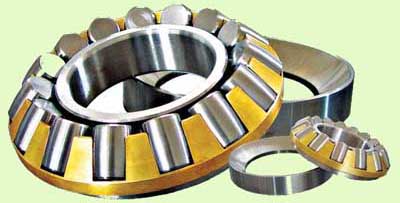

Thrust Roller Bearing

Material：
Finish：

Housing washer raceway of thrust spherical roller bearing is sphere, has self-aligning ability, shaft to bearing is allowed to has a certain gradient, thrust spherical roller bearing has large axial loading capacity. Further more, when supporting an axial load, it can also bear a radial load which is not more than 55% of axial load. Normally,thrust spherical roller bearings are lubricated with oil.

Boundary dimensions(mm)							load ratings(KN)		Bearing No.	Limiting speeds (r/min)		Mounting dimensions(mm)		Mass(kg)
d	D	T	A	B	C	rmin	Cr	Cor	Bearing No.	Grease	Oil	d1	D1	Mass(kg)
60	130	42	38	15	20.1	1.5	270	765	29412	1850	2200	86	117.7	2.75
65	140	45	42	16	21.3	2	325	920	29413	1550	2200	93	126.8	3.41
70	150	48	44	17	22.7	2	365	980	29414	1450	2000	99.5	136.3	4.1
75	160	51	47	18	24.3	2	415	1140	29415	1450	1800	106	145.8	4.98
80	170	54	50	19	26.8	2.1	450	1240	29416	1450	1800	113	154.1	5.95
	300	90	92	32	42.1	4	1250	3880	29430	700	1000	209.5	271.3	29.6
160	270	67	92	23	31.7	3	815	2460	29332	800	1100	205	250.5	15.5
	320	95	99	34	47.1	5	1430	4370	29432	680	900	219	292.2	35.9
..	..	..	..	..	..	..	..	..	..	..	..	..	..	..
190	270	48	103	15	24	2	500	2000	29238		1300	224	254	7.95
	320	78	110	27	38.6	4	1140	6050	29338	580	760	240.5	298.5	25.5
	380	115	117	41	54.9	5	1930	4010	29438	750	800	262	345.3	61.4
200	280	48	108	15	24	2	512	2200	29240		1300	236	271	9.08
	340	85	116	29	39.1	4	1290	4750	29340	650	800	259	315.6	32
	400	122	122	44	57.5	5	2160	6820	29440	550	760	278	363.2	73
..	..	..	..	..	..	..	..	..	..	..	..	..	..	..
420	580	95	225	30	49.2	5	2000	5600	29284		560	485	552.6	74.9
	650	140	235	48		6	3570	13400	29384		420	514.5	620	170
	730	185	244	67	91.2	7.5	5400	20200	29484		370	520	675.3	325
