Bearing Department

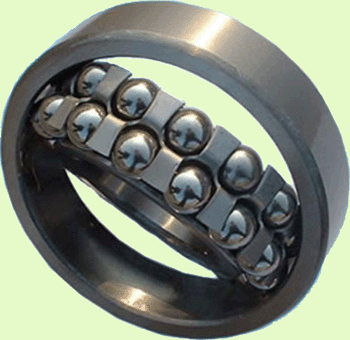

The self-aligning ball bearing

Material：
Finish：

Was invented by SKF. It has two rows of balls and a common concave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

Series	Bore Diameter(mm)		Variant structure
Series	Cylindrical bore	Tapered bore	Variant structure
1200,1200k	10-120	10-120	2rs,+h200
1300,1300k	10-110	10-110	2rs,+h300
2200,2200k	10-110	10-110	2rs,+h2200
2300,2300k	10-110	10-110	2rs,+h2300
